Hexagon Wood Wool Acoustic Panel Office Wall Interior Decorated Soundproof Material
Acoustical Noise Reduction Panels product portfolio consists of a range of Wood Wool noise reducing acoustic panels,
designed to be mounted on walls and ceilings.
The noise reducing acoustic panels are available in a variety of colors, materials, thicknesses,
and edge treatments – to meet the customer’s application.
The panel material consists primarily of Poplar Wood Fiber and Cement.
Available in 9 shapes : Square, Rectangle, Circle, Hexagon, Parallelogram, Triangle, Quarter Circle .
Product Introduction :
| Material | Import New Zealand poplar wood |
| Wood fiber width | 1mm / 2mm / 3mm / TBD |
| Panel standard thick | 15mm / 25mm / 38mm / 50mm ect |
| Finish | Nature / Panting |
| Color | Choose from RAL , DULUX ect |
| Panel Size | 1200*600mm / 2440*1220mm / TBD |
| Edge treatment | 90° clean cut / 45° beveling |
Specific Features :
l documented sustainability
l Sound absorption and sound insulation
l Moisture proof and Mildew proof
l Green environment - friendly
l Durability
l Easy to install
l Fire Resistance
l Thermal insulation
Tolerance and specifications :
The following General Tolerances Apply for all SKUs
| Requirement | Dimension / Specification | Tolerance |
| Beveled Edge | 45% | ±5% |
| Beveled Edge Moisture Content (Before Cutting Process) | 8.5 mm | ±2 mm |
| Moisture Content (Final Inspection) | 25 % | ± 15% (10% to 40% MC) |
| Wood Fiber Thickness | 1mm (3/64") | ± 0.25mm (± 0.010") |
| Panel Flatness | 5mm Maximum | Range: 0mm to 5mm |
Sound absorption NRC data :
According to BS EN ISO 354:2003 “Acoustics -Measurement of sound absorption in a reverberation room"
(equivalent to GB/T 20247-2006)in the Acoustic Testing Services Limited.
Painting Color Options :
RAL or DULUX color card or provide us the colors to match the most similar one .

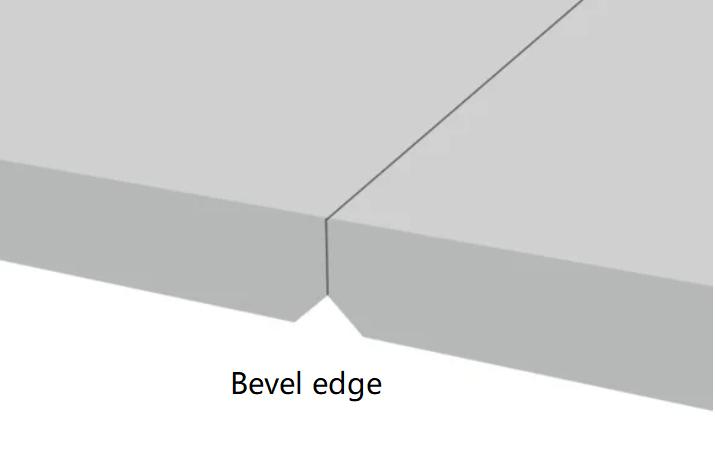

Edge options :
Ceiling / Wall Installation by Most Simple Nail Method :
Project Case :
FAQ
1. Q: Can I install wood wool acoustic panel in wet rooms ?
A : Yes , it can be used in wet rooms without problems , we have many years of experience using in places such as swimming baths , locker rooms , bathrooms and summer houses with swimming pool .
2. Q: How many screws should I use per wood wool acoustic panel installation ?
A: panel size 600*600mm - 4 screws per panel
panel size 1200*600mm - 6 screws per panel
panel size 2400*600mm - 10 screws per panel
3. Q : Can I install wood wool acoustic panel at ceiling outdoors ?
A :Yes , the cement contents ensure that the panel are not damaged by moisture , therefore ,
it is very suitable for e.g. under eaves and under lean-to roofs .
